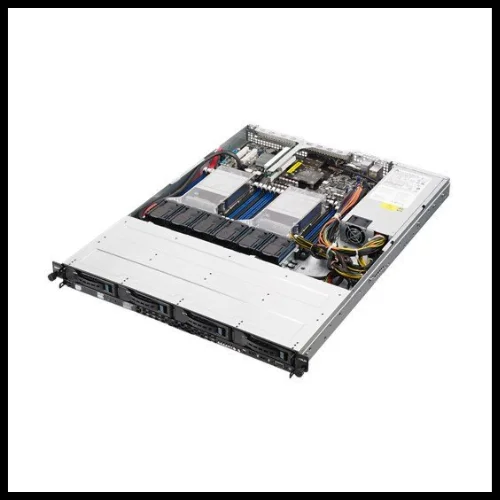

RS500-E8-PS4 is a 1U rack server that delivers extreme computing power, high memory and storage capacity, as well as highly-flexible expandability. Engineered with premium components throughout, RS500-E8-PS4 provides high dependability and exceptional efficiency levels, making it ideal for datacenter deployment, and both small and medium business applications.




  • Processor / System Bus
    Intel® Xeon® processor E5-2600 product family (150W) *1
    Intel® Xeon® processor E5-2600 v2 product family (150W) *1
    2 x Socket 2011
    *Refer to support page for more information
    QPI 6.4 / 7.2 / 8.0 GT/s
    *Please refer to overview for details
  • Core Logic
    Intel® C602-A PCH
  • Memory
    Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU)
    Capacity : Maximum up to 768GB LRDIMM/Maximum up to 768GB RDIMM
    Memory Type :
    800/1600/1333/1866/1066 DDR3 with ECC RDIMM*
    1600/1333/1866/1066 DDR3 UDIMM*
    DDR3 LRDIMM 1866/1333/1066 *
    Memory Size :
    1GB, 8GB, 4GB, 2GB UDIMM
    16GB, 32GB, 4GB, 2GB, 1GB, 8GB RDIMM
    16GB, 8GB, 32GB LRDIMM
  • Expansion Slots
    2 * PCI-E x16 (Gen3 x16 Link) (FH/HL )
    1 * PIKE Slot for Stroage Enhancement
  • Storage
    SAS/SATA Controller :
    ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
    ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
    ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
    ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
    SATA Controller :
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
    (Support Software RAID 0, 5, 1, 10 )
    Intel® C602-A
    2 x SATA3 6Gb/s ports
    4 x SATA2 3Gb/s ports
  • HDD Bays
    4x 3.5″ Hot-Swap HDD Bays
  • Auxiliary Storage FDD/CD/DVD
    1 * Slim-type Optical Drive Bay
    Options: No Device / DVD-RW
  • Networking
    1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2300 with 16MB VRAM
  • On Board I/O
    1 x Internal A Type USB Port
    1 x PS/2 mouse port
    1 x PS/2 keyboard port
    1 x VGA port
    5 x RJ-45 ports (One for ASMB6-iKVM)
    4 x USB 2.0 ports (Front x 2, Rear x 2)
  • OS Support
    VMWare ESX4.1/ESXi4.1
    Windows® Server 2008 R2*Subject to change without any notice
    Windows® Server 2008 Enterprise 32/64-bit
    RedHat® Enterprise Linux AS5.6/6.0 32/64-bit
    SuSE® Linux Enterprise Server 11.2 32/64-bit
  • Management Solution
    ASWM Enterprise
    On-Board ASMB6-iKVM for KVM-over-IP
  • Regulatory Compliance
    C-Tick, CE, BSMI, CCC, FCC(Class A)
  • Dimensions
    689.5mm * 444mm * 43mm
  • Form Factor
  • Weight
  • Power Supply
    1+1 Redundant 800W 80PLUS Platinum Power Supply
  • Environment
    Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Accessory Box
    1 x Bag of Screws
    2 x AC Power Cable
    1 x RS700-E7 Support DVD
    1 x RS700-E7 User’s Guide
    1 x ASUS ASWM Enterprise User’s Guide
    1x ASMB6-iKVM SDVD
    1x ASWM6-iKVM User Guide
  • Optional Items
    ASUS PIKE 2008 RAID card (90-S00CS0130T)
    ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
    ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T)
    ASUS PIKE 2308 RAID card (90SKC000-M08AN0)
  • Note
    * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK “” for latest memory AVL update
    *1 >135W support under 25 °C environment

Part List

  • Chassis
  • MB
    Z9PP-D24 (61-MSVDW0-01 )
  • HDD Backplane
    1 x BP4LX-R10A (61-C1SD61-02)
  • Front Panel Board
    1x FPB-AR14 (61-C1S880-02)
  • Riser Card
    1x RE16L-R12A (60SC00D0-SC0A02)
    1x RE16R-R12A (60SC00E0-SC0A02)
  • CPU Heatsink/ Cooler
    2x LGA2011 1U VC HEAT SINK (13071-00090600)
  • Power Supply Unit
    2x 800W Redundant Power Supply (0A100-00080500)
  • HDD Tray
    4x Hot-Swap 3.5″ HDD Trays (13GS1I0AM010-1)
  • HDD Cage
    1x AR16 35HDD MODULE ASSY (13GS0I0AM110-1)
  • Fan
    8x System Fans (40mm 56mm) (13G074152010)
  • Fan Holder
    8x FAN HOUSING (13GS1200P070-1)
    16x REVIT (13G014082010)
    16x SCREW M3.8 *7L(F) B-ZN #2 (13GMCF4W070Z-1)
  • Air Duct/Mylar
    1x R12D PUMA 24D FANDUCT A (13GS1E00P020-1)
    1x R12D PUMA 24D FANDUCT B (13GS1E00P030-1
  • Optical Drive
    1x Slim ODD (17601-00012500)
    1x R10E ODD BEZEL ASSY (13GS1J0AP010-1)
  • Mounting Rails
    1 x Tool-less rail kit (13SV0006AM0801)
  • Cable
    1x FPB CBL 2*8 TO 2*10+1*6,950MM (14001-00800500)
    1x MINI SAS TO 4 SATA L:820MM (14011-00050000)
    1x POWER CABLE 8P TO 8P,400MM (14001-00260000)
    1x POWER CABLE 8P TO 8P;L=200MM (14G000610140)
    1x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303)
    1x USB CABLE 2*5P TO 2*4P,L=550MM (14G000509210)


There are no reviews yet.

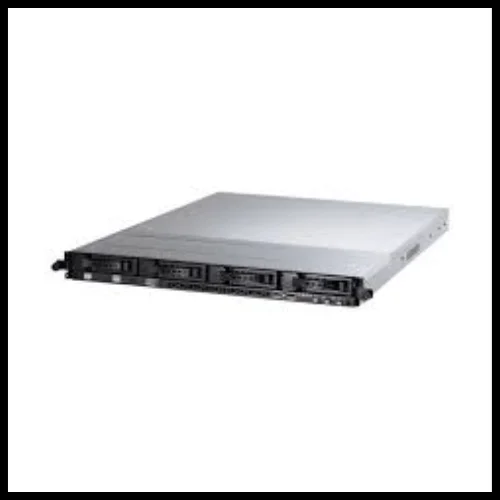

Be the first to review “ASUS RS700 E7 RS4”
