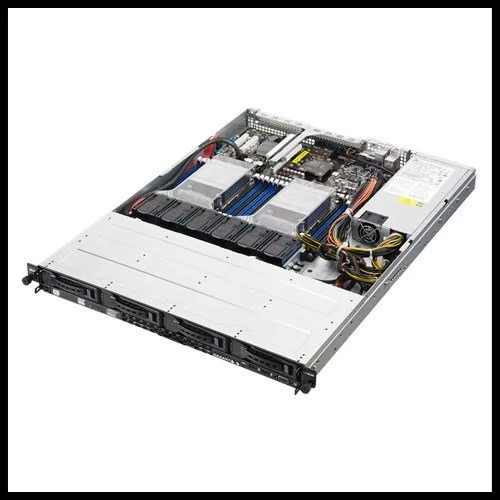

Asus Rack Server RS500 E8 PS4 level 2


RS500-E8-PS4 is a 1U rack server that delivers extreme computing power, high memory and storage capacity, as well as highly-flexible expandability. Engineered with premium components throughout, RS500-E8-PS4 provides high dependability and exceptional efficiency levels, making it ideal for datacenter deployment, and both small and medium business applications



ProcessorDual Processor E5-2678 v3
HDD Bays4 3.5 inch HDD BAY
Form Factor1U


Processor / System Bus
2 x Socket R3 (LGA 2011-3)
Intel® Xeon® processor E5-2600 v4 product family (145W) *
Intel® Xeon® processor E5-2600 v3 product family(145W)*
QPI 6.4 / 8.0 / 9.6 GT/s
*Refer to support page for more information
Core LogicIntel® C612 PCH
MemoryMemory Size :
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
* Refer to support page for more information
16GB, 4GB, 32GB, 8GB RDIMM
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity :Maximum up to 512GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 128GB UDIMM
Memory Type :
RDIMM DDR4 1866/2400 /1600/2133
LRDIMM 2133 /1600/2400 /1866 DDR4
StorageSATA Controller :
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 10, 1, 5, 0 )
9 x SATA3 6Gb/s ports
Intel® C612
1 x M.2 connectorSAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
Expansion Slots2 + 1

1 x PCI-E x16 (Gen3 x8 Link), FH, HL
1 x PCI-E x8 (Gen3 x8 Link), FH, HL
1 x OCP Mezzanine (Gen3 x8 link)*

* Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional)

NetworkingDual Port
GraphicAspeed AST2400 with 32MB VRAM
On Board I/O3 x RJ-45 ports (One for ASMB6-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x SFP+ ports
OS SupportWindows® Server 2008 R2

*Subject to change without any notice
Windows® Server 2016
Windows® Server 2012 R2
Citrix XenServer
Windows® Server 2012
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server

Management SolutionASWM Enterprise
Default 1 x ASMB6-iKVM for KVM-over-IP
Regulatory ComplianceFCC(Class A), CE, BSMI, C-Tick
Dimensions615mm x 444mm x 44mm
24.21″ x 17.48″ x 1.73″
WeightNet Weight: 9.84 Kg
Gross Weight: 16.10 Kg
Power SupplySingle 600W 80PLUS Gold Power Supply

Rating: 100-240Vac,9A/5A ,50-60Hz, Class I

EnvironmentOperation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box1 x Bag of Screws
1 x AC Power Cable
Optional ItemsASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T)
ASUS PIKE 2208 H/W RAID card (90SKC000-M00AN0)
ASUS PIKE 2308 RAID card (90SKC000-M08AN0)

Part List

ChassisASUS R20D 2U Rackmount Chassis
MBASUS Z9PE-D16-10G/Dual Server board
HDD Backplane“1 x RS720-E7-RS24-EG SAS/SATA Backplane (BP24LX-R21C)
Front Panel Board1 x Front I/O Board (FPB-R20A) (60SC00V0-SC0A02)
CPU Heatsink/ Cooler2 x CPU Heatsink (13071-00090800)
Power Supply Unit“1 x 770W Redundant Power Supply (04G184004921)
(2 x Power Supply Module default for North America)”
HDD Tray24 x Hot-swap 2.5″ HDD trays (13GS120AM021-1)
Fan4 x System Fans (80mm x 38mm) (13G074154010)
Fan Holder4 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1)
Mounting Rails1 x Friction rail kit (13GS190AM042-1)
