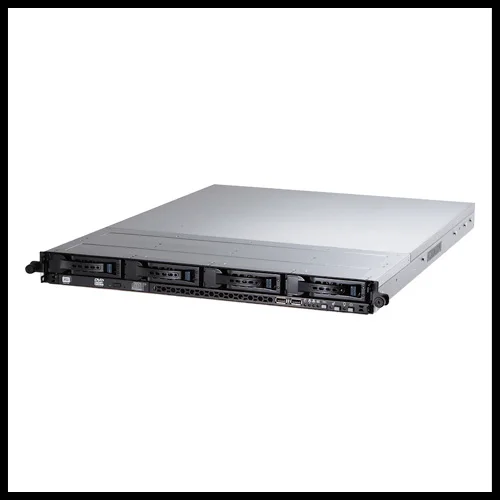

ASUS Rack Server RS700-E7-RS4-1U

Key Specifications

• Processor / System Bus
  Intel^® Xeon^® processor E5-2600 product family (150W) *¹
  Intel^® Xeon^® processor E5-2600 v2 product family (150W) *¹
  2 x Socket 2011
  *Refer to support page for more information
  QPI 6.4 / 7.2 / 8.0 GT/s
  *Please refer to overview for details
• Core Logic
  Intel® C602-A PCH
• Memory
  Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU)
  Capacity : Maximum up to 768GB LRDIMM/Maximum up to 768GB RDIMM
  Memory Type :
  800/1600/1333/1866/1066 DDR3 with ECC RDIMM*
  1600/1333/1866/1066 DDR3 UDIMM*
  DDR3 LRDIMM 1866/1333/1066 *
  Memory Size :
  1GB, 8GB, 4GB, 2GB UDIMM
  16GB, 32GB, 4GB, 2GB, 1GB, 8GB RDIMM
  16GB, 8GB, 32GB LRDIMM
• Expansion Slots
  2 * PCI-E x16 (Gen3 x16 Link) (FH/HL )
  1 * PIKE Slot for Stroage Enhancement
• Storage
  SAS/SATA Controller :
  ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
  ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
  ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
  ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
  SATA Controller :
  Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
  (Support Software RAID 0, 5, 1, 10 )
  Intel® C602-A
  2 x SATA3 6Gb/s ports
  4 x SATA2 3Gb/s ports
• HDD Bays
  4x 3.5″ Hot-Swap HDD Bays
• Auxiliary Storage FDD/CD/DVD
  1 * Slim-type Optical Drive Bay
  Options: No Device / DVD-RW
• Networking
  1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN
• Graphic
  Aspeed AST2300 with 16MB VRAM
• On Board I/O
  1 x Internal A Type USB Port
  1 x PS/2 mouse port
  1 x PS/2 keyboard port
  1 x VGA port
  5 x RJ-45 ports (One for ASMB6-iKVM)
  4 x USB 2.0 ports (Front x 2, Rear x 2)
• OS Support
  VMWare ESX4.1/ESXi4.1
  Windows® Server 2008 R2*Subject to change without any notice
  Windows® Server 2008 Enterprise 32/64-bit
  RedHat® Enterprise Linux AS5.6/6.0 32/64-bit
  SuSE® Linux Enterprise Server 11.2 32/64-bit
• Management Solution
  ASWM Enterprise
  On-Board ASMB6-iKVM for KVM-over-IP
• Regulatory Compliance
  C-Tick, CE, BSMI, CCC, FCC(Class A)
• Dimensions
  689.5mm * 444mm * 43mm
• Form Factor
  1U
• Weight
  18Kg
• Power Supply
  1+1 Redundant 800W 80PLUS Platinum Power Supply
• Environment
  Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
• Accessory Box
  1 x Bag of Screws
  2 x AC Power Cable
  1 x RS700-E7 Support DVD
  1 x RS700-E7 User’s Guide
  1 x ASWM ENTERPRISE DVD
  1 x ASUS ASWM Enterprise User’s Guide
  1x ASMB6-iKVM SDVD
  1x ASWM6-iKVM User Guide
• Optional Items
  ASUS PIKE 2008 RAID card (90-S00CS0130T)
  ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
  ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T)
  ASUS PIKE 2308 RAID card (90SKC000-M08AN0)
• Note
  * DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK “http://www.asus.com/”www.asus.com for latest memory AVL update
  *1 >135W support under 25 °C environment
