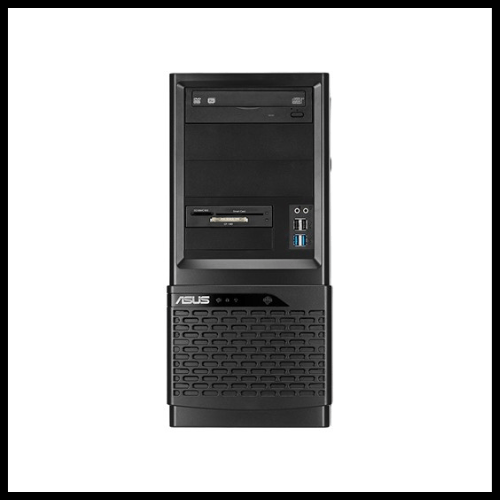

ESC500 G3


Additional information


Single Processor E3 1220v3



HDD Bays


Form Factor


Key Specifications

Processor / System Bus
*Refer to support page for more information
1 x Socket LGA1150
4th Gen Intel® Core™ i3 processors
Intel® Xeon® processor E3-1200 v3 product family
Core LogicIntel® C226 Chipset
MemoryMemory Type :
non ECC UDIMM DDR3 1600/1333*1
with ECC DDR3 UDIMM 1600/1333*1
Memory Size :
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
StorageSATA Controller :
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 1, 10, 5, 0 )
Intel® C226
6 x SATA3 6Gb/s ports
Expansion SlotsTotal: 7
1 x PCI-E Gen3 x16 (@ x16 or x8) (auto switches to x8 link if slot 3 or slot 5 is occupied)
1 x PCI-E Gen3 x16 (@ x8 or x4) (auto switches
to x4 link if slot 5 is occupied)
1 x PCI-E Gen3 x16 (@ x4)
1 x PCI-E Gen2 x16 (@ x4)
1 x PCI-E Gen2 x1 (@ x1)
2 x PCI
Auxiliary Storage FDD/CD/DVD3 * 5.25″ media bays for DVD-RW, optical drives.
(standard parts depends on region)
Networking2 x Intel® I210AT
GraphicAspeed AST2300 with 16MB VRAM
Front I/O Ports2 x USB 3.0
2 x USB 2.0
1 x Headphone port
1 x Microphone port
Rear I/O Ports1 x PS/2 KB/MS port
1 x S/PDIF Out (Optical)
2 x USB 3.0 ports
4 x USB 2.0 ports
2 x RJ-45 ports
1 x DVI-I*2
1 x USB BIOS Flashback switch
1 x 8-channel Audio I/O
1 x HDMI*2
1 x DisplayPort*2
OS SupportWindows® 8 32-bit
Windows® 7 32-bit
Windows® 8.1 Pro 64-bit*Subject to change without any notice
Windows® 8 64-bit
Windows® 7 64-bit
Management SolutionOn-Board ASMB6-iKVM for KVM-over-IP
Regulatory ComplianceCE, BSMI, CCC
Dimensions423mm x 190mm x 435mm
WeightNet Weight : 10.8 KG
Gross Weight : 15.5 KG
Power Supply1 450W 80PLUS
EnvironmentOperation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box1 x ESC500 G3 User’s Guide
1 x ESC500 G3 Support DVD
1 x Windows 7 Professional 32bit Recovery DVD (for OS bundled SKU)
1 x Windows 7/8 Professional 64bit Recovery DVD (for OS bundled SKU)
1 x AC Power Cable
1 x COM port Cable
1 x DVI-TO-VGA converter
Optional ItemsSmart Card Reader
Optional Anti-Virus CD pack

Part List

ChassisSS RS720 Rackmount Chassis
MBASUS Z9PR-D12/2L Server board
HDD Backplane1 x SS720-X7/RS8 SAS/SATA Backplane (BP8LX-R21B) (61-C1SES0-02)
Front Panel Board1 x Front I/O Board (FPB-AR14) (61-C1S880-02)
CPU Heatsink/ Cooler1 x CPU Heatsink (13071-00090800)
Power Supply Unit500W 80PLUS Single Power Supply, Bronze
100-240V, 10-6A, 50-60Hz, Class I700W 80PLUS Single Power Supply, Silver
100-240V, 10-5A, 50-60Hz, Class I600W 80PLUS Single Power Supply, Gold*
100-240V, 8-4A, 50-60Hz Class I
*600W Power supply is only available for selected countries.
HDD Tray3 x Internal 3.5″ HDD Bays
1 x Internal 2.5″ HDD/SSD Bays
Fan4 x System Fans (80mm x 38mm) (13G074154010)
Fan Holder4 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1)
Mounting Rails1 x Rail kit
