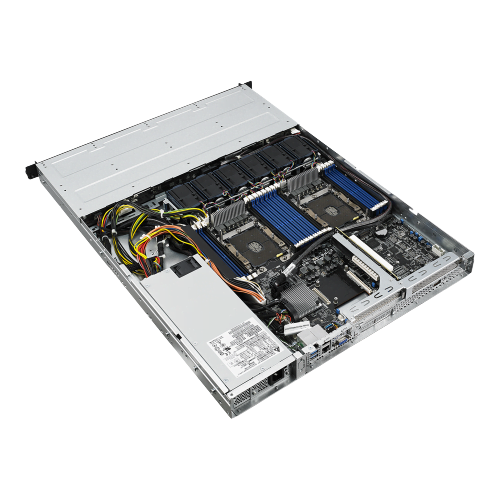

ASUS RACK SERVER RS500-E9-PS4
RS500-E9-PS4 provides high dependability and exceptional efficiency levels, making it ideal for datacenter deployment, and both small and medium business applications.
₹ 1,**,*** + 18% GST
KEY FEATURES
- Powered by the latest Intel Xeon Scalable processors (2nd Gen).
- 165W CPU with support 16DIMMs.
- With four SAS or SATA drives, it is built for flexible storage.
- OCP 2.0 Mezzanine card support provides ultrafast connectivity.
- Two M.2 slots support 22110-size SSDs for faster boot times.
- Thermal Radar’s exclusive energy-saving technology reduces fan power consumption by up to 20%.
- Internal USB 3.0 connector and microSD card support for better maintenance and debugging.
- ASMB9 out-of-band remote management and ASUS Control Center in-band provide complete IT infrastructure control.
Additional information
| Processor | 6138 Gold Dual Processor |
|---|---|
| HDD Bays | 4 3.5 inch HDD BAY |
| Form Factor | 1U |
Key Specifications
| Processor / System Bus | 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (165W) *Refer to support page for more information *Please refer to overview for details UPI (10.4 GT/s) |
| Generation | E9 |
| Core Logic | Intel® Lewisburg PCH C621 |
| Memory | Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 4096GB LR-DIMM 3DS Memory Type : DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM DDR4 2666 LR-DIMM 3DS Memory Size : 64GB, 32GB, 16GB RDIMM 128GB, 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information |
| Expansion Slots | 1 x PCIe 3.0 x16 Slot(Gen3 x16 link); FH,HL (CPU1) 1 x PCIe 3.0 x8 Slot(Gen3 x8 link); FH,HL (CPU2) 1 x OCP 2.0 Mezzanine Conn.(Gen3 x16 link)(CPU1) |
| Storage | SATA Controller : Intel® C621 SATA Controller : Intel® C621 2 x M.2 connector Optional kits Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card |
| Drive Bays | 4 x 3.5″ Hot-swap Storage Bays (Backplane Supports 4 x 3.5″ or 2.5″ SATA/SAS Devices) |
| Auxiliary Storage FDD/CD/DVD | Optinal Slim-type DVD Drive |
| Networking | 2 x Intel X722 + Marvel PHY 88E1514 (PHY) + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| Front I/O Ports | 2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports | 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 1GbE LAN ports 1 x RJ-45 Management port |
| Switch/LED | Rear: – 1 x Power Switch/LED – 1 x Q-Code/Port 80 LED – 1 x Locatation LED – 1 x Message LED Front: – 1 x Power Switch/LED – 1 x Location Switch/LED – 1 x Reset Switch – 1 x Message LED – 4 x LAN LED (LED1~2 for on-board LAN, 3~4 for OCP LAN) |
| OS Support | Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html |
| Management Solution | ASUS Control Center Enterprise (Optional) ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Dimensions | 616mm x 444mm x 44mm 24.21″ x 17.48″ x 1.73″ |
| Form Factor | 1 U |
| Weight | Net Weight: 10 Kg Gross Weight: 16 Kg |
| Power Supply | Single 650W 80 PLUS Platinum Power Supply Rating: 100-127/200-240 Vac, 9A/5A, 50-60Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Note | For the full function of the system, please install both CPUs on CPU sockets. |
