₹131,000.00

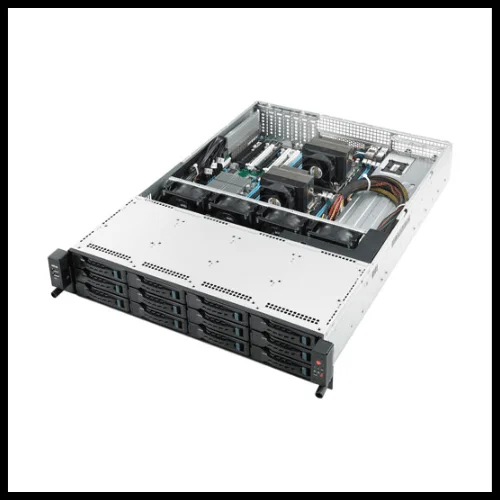

Based on the Intel® Socket R E5-2600 processor platform, the Asus RS720-E7-RS12 server offers customers assured quality of service with high memory capacity, outstanding power efficiency, quad LAN, and mass storage. It also enables comprehensive server management and flexible RAID, offering functional integration that makes it an excellent all-round choice for any IT application.
Out of stock
Based on the Intel® Socket R E5-2600 processor platform, the Asus RS720-E7-RS12 server offers customers assured quality of service with high memory capacity, outstanding power efficiency, quad LAN, and mass storage. It also enables comprehensive server management and flexible RAID, offering functional integration that makes it an excellent all-round choice for any IT application.
| Processor | Single Processor E5-2660 v2 |
|---|---|
| RAM | 64GB |
| HDD Bays | 12 x 3.5" HDD BAY |
| Form Factor | 2U |
| Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (150W) *1 Intel® Xeon® processor E5-2600 v2 product family (150W) *1 *Refer to support page for more information QPI 6.4 / 7.2 / 8.0 GT/s |
| Core Logic | Intel® C602-A PCH |
| Memory | Memory Size : 32GB, 8GB, 16GB LRDIMM 4GB, 2GB, 8GB, 1GB UDIMM 8GB, 2GB, 4GB, 1GB, 16GB, 32GB RDIMM Total Slots : 12 (4-channel per CPU, 8 DIMM for CPU1, 4 DIMM for CPU2) Capacity : Maximum up to 384GB RDIMM/Maximum up to 96GB UDIMM/Maximum up to 384GB LRDIMM Memory Type : DDR3 1600/800/1333/1066/1866 RDIMM*2 1600/1333/1066/1866 UDIMM non ECC DDR3*2 1066/1866/1333 DDR3 LRDIMM*2 |
| Storage | SATA Controller : LSI® MegaRAID (For Linux/Windows) (Support Software RAID 1, 10, 0 ) Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 10, 5, 0, 1 ) 2 x SATA3 6Gb/s ports Intel® C602-A 4 x SATA2 3Gb/s ports SAS Controller : ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) |
| Expansion Slots | Low-profile 1* PCI-E x16 (Gen3 x16 Link) + 5* PCI-E x8 (Gen3 x8 Link) Or 1* PCI-E x16 (Gen3 x8 Link) + 6* PCI-E x8 (Gen3 x8 Link)1* PIKE Slot for Stroage Enhancement |
| Networking | 2 x Intel® 82574L + 1 x Mgmt LAN |
| Graphic | Aspeed AST2300 with 16MB VRAM |
| On Board I/O | 1 x PS/2 keyboard port 5 x RJ-45 ports (One for ASMB6-iKVM) 2 x Serial Port Header 1 x PS/2 mouse port 1 x Internal A Type USB Port 1 x VGA port 4 x USB 2.0 ports (Front x 2, Rear x 2) |
| OS Support | Windows® Server 2008 R2 Enterprise CentOS 5.6 32/64-bit Windows® Server 2008 R2 RedHat® Enterprise Linux AS5.6/6.0 32/64-bit VMWare ESX4.1/ESXi4.1 Windows® Server 2008 Enterprise 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit |
| Management Solution | On-Board ASMB6-iKVM for KVM-over-IP |
| Regulatory Compliance | CE, BSMI, FCC(Class A), C-Tick |
| Dimensions | 615mm * 444mm * 87.0mm |
| Weight | 22Kg |
| Power Supply | 1 450W 80PLUS |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x Bag of Screws 1 x AC Power Cable |
| Optional Items | ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T) ASUS PIKE 2208 H/W RAID card (90SKC000-M00AN0) ASUS PIKE 2308 RAID card (90SKC000-M08AN0) |
| Chassis | SS RS720 Rackmount Chassis |
| MB | ASUS Z9PR-D12/2L Server board |
| HDD Backplane | 1 x SS720-X7/RS8 SAS/SATA Backplane (BP8LX-R21B) (61-C1SES0-02) |
| Front Panel Board | 1 x Front I/O Board (FPB-AR14) (61-C1S880-02) |
| CPU Heatsink/ Cooler | 1 x CPU Heatsink (13071-00090800) |
| Power Supply Unit | 1 x 450W Power Supply (04G184004921) |
| HDD Tray | 6 x Internal HDD Bays (13GS1I0AM050-1) |
| Fan | 4 x System Fans (80mm x 38mm) (13G074154010) |
| Fan Holder | 4 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1) |
| Mounting Rails | 1 x Rail kit |
